• Sigle Board Computer mit Intel CPU i7, i5, i3 CPU  max 3.3 GHz
• Chipset Intel QM67 Express (Sandy Bridge)
• Socket 989 G2

• FSB replaced with DMI

• 8 GB RAM max

• VGA, DVI, HDMI Port, Dual Display Support

• 2 x GB LAN

• 8 x USB /2 x RS-232/485 /Parallel Port

• PCIe Slot, PCIe Mini-Card Slot
  onBoard RAID
• Intel vPro Technology Support
• Fanless Operation with Heatpipe
• Single Voltage Power

Technische Daten_____pass. Gehäuse-& Montagelösung

NEU

• Single Board Computer mit Intel CPU i7, i5, i3 CPU max 3.2 GHz
• Chipset Intel QM67 Express (Sandy Bridge)
• Socket 988B

• 16 GB RAM max

• VGA, DVI, HDMI Port, Dual Display Support

• 2 x GB LAN

• 6 x USB /3 x RS-232/422/485
• GPIO Interface /IrDA
• PCIe Slot, PCIe Mini-Card Slot

• Intel vPro Technology Support
• Fanless Operation with Heatpipe
• Single Voltage Power

Technische Daten_____pass. Gehäuse-& Montagelösung

N E U

• Single Board Computer mit Intel i7, i5, i3 CPU max 3,2 GHz
• Intel QM57 Chipset
• Socket 989

• FSB 800/1066 MHz

• 8 GB RAM max

• VGA, DVI, HDMI Port

• 2 x GB LAN

• 8 x USB

• PCIe Slot, PCIe Mini-Card Slot

• Raid onBoard
• Fanless Operation with Heatpipe
• ATX Power

Technische Daten _____pass. Gehäuse-& Montagelösung

 Ultra Low Power Board mit ATOM CPU

MSI-IM-US15WP ATOM CPU Z 510P / Z530P Ultra Low Power

• Single Board Computer mit Intel Atom CPU Z510P/Z530P 1.1 / 1.6GHz
• Intel US-15WP WPT Chipsatz ( nur 5 W Power)
• Hyper Threading Technology
• FSB  533 MHz
• RAM bis 2 GB
• LAN 10/100 Base TX
• 4 x USB, 2 x RS-232
• 1 MIni- PCI Expansion Slot
• CF-Socket, MSDIO
• Integrated LVDS/VGA Controller
• Integrated AC97 Audio
• Fanless Operation
• Extended Operating Temp. -40 ~ 85°C
• 12VDC single Voltage

Technische Daten _____pass. Gehäuse-& Montagelösung

• Single Board Computer with OnBoard Atom N270 1.6GHz
• Power Consumption only 18W
• Intel -945 Chipsatz +ICH7
• Hyper Threading Technology
• FSB  533 MHz
• RAM max. 2 GB
• 2 x GB LAN
• 6 x USB, 5 x RS-232 /422/485
• 2 x SATA Controller onBoard, 1 x IDE
• Graphic Controller (Intel GMA950), VGA, DVI Output
• Integrated AC97 Audio
• 1 PCI-Slot, PCIe
• Fanless Operation
• ATX Voltage

Technische Daten

MSI-IM-GM45 Low Power Mini-ITX

• Single Board Computer für Intel Core2 Extreme, Core2 Duo/Core2Quad , Penryn CPU
• Socket P
• Intel GM 45 Chipsatz
• FSB  667/800 MHz
• RAM bis 2 GB
• Dual GB LAN
• 6 x USB, 2 x RS-232 /422
• PCI-, Mini- PCI Expansion Slot
• on Board SATA RAID
• Intel Trusted Platform Module (TPM )
• Fanless Operation (with Heatpipe)
• ATX Voltage

Technische Daten

• Single Board Computer für Intel Core2Duo/Quad (Penryn)
• Intel® GM45 Express Chipsatz + ICH9M
• FSB  667//800 MHz
• RAM bis 4 GB
• Grafik-Controller Intel GMA X4500MHD
• Integrated HDMI / DVI /VGA
• Dual LAN  10/100/1000 Base TX
• 6 x USB, 4 x RS232 / 1 x RS-232/422
• 4 x SATA Interface
• 1 PCI , Mini-PCI Expansion Slot
• Audio 5.1 Channel HD Audio
• Fanless Operation  ( mit Heatpipe)
• 12 VDC single Voltage

Technische Daten

• Single Board Computer mit Pentium  Mobile (Dothan) bis 2.2 GHz
• Intel GM-915 Chipsatz
• Socket 479
• Hyper Threading Technology
• FSB  400/533 MHz
• RAM bis zu 2 GB
• 10/100/1000 Base TX LAN  ( Realtec Gbe)
• 4 x USB, 2 x RS-232
• IEEE 1394
• 2 x sATA Controller
• 1 PCI Expansion Slot
• Integrated AC97 Audio
• Fanless Operation  ( mit Heatpipe)
• 12-19VDC single Voltage

Technische Daten

• Single Board Computer für Intel CoreDuo, Core2Duo
• Mobile Intel® 945 Chipset
• FSB  533/667 MHz
• RAM up to 2 GB
• Triple LAN 10/100/1000 Base TX
• 6 x USB, 1 x RS-232, 3 x RS-232/422/485, LPT
• SATA Interface
• IDE1-Interface
• 1 PCI Expansion Slot
• Integrated LVDS/VGA Controller (Intel 945 GM)
• Integrated ICH-7 with Realtek ALC883
• GPIO Interface (16 Bit)
• Fanless Operation  ( mit Heatpipe)
• ATX Power

Technische Daten

• Single Board Computer für Intel CoreDuo, Core2Duo
• Mobile Intel® 945 Chipset
• FSB  533/667 MHz
• RAM up to 4 GB
• Dual LAN 10/100/1000 Base TX
• DVI + VGA
• 8 x USB, 1 x RS-232, 3 x RS-232/422/485, LPT
• SATA Interface
• onBoard Raid
• IDE1-Interface
• 1 PCI Expansion Slot
• Integrated LVDS/VGA Controller (Intel 945 GM)
• Integrated ICH-7 with Realtek ALC883
• GPIO Interface (16 Bit)
• Fanless Operation  ( mit Heatpipe)
• ATX Power

Technische Daten

• Single Board Computer für Intel Core2Duo (Penryn,Merom)
• Intel® GM45 Express Chipsatz + ICH9M
• FSB  667/800/1066 MHz
• RAM bis 4 GB
• Grafik-Controller Intel GMA X4500HD
• Integrated HDMI / DVI /VGA
• Dual LAN  10/100/1000 Base TX
• 8 x USB, 2 x RS-232/422
• 4 x SATA Interface
• 1 PCI Express 32 Bit, Mini-PCI Expansion Slot
• Audio Realtek ALC888
• Fanless Operation  ( mit Heatpipe)
• Extended Operating Temp. -20 ~ 70°C
• ATX Power

Technische Daten

• Single Board Computer für Intel Core2Duo (Penryn,Merom)
• Intel® GM45 Express Chipsatz + ICH9M
• FSB  667/800/ 1066 MHz
• RAM bis 4 GB
• Grafik-Controller Intel GMA X4500HD
• Integrated HDMI / DVI /VGA
• Dual Intel GB LAN
• 8 x USB, 2 x RS-232/422
• 4 x SATA Interface
• 1 PCI Express 32 Bit, Mini-PCI Expansion Slot
• Audio Realtek ALC888
• Fanless Operation  ( mit Heatpipe)
• ATX Power

Technische Daten

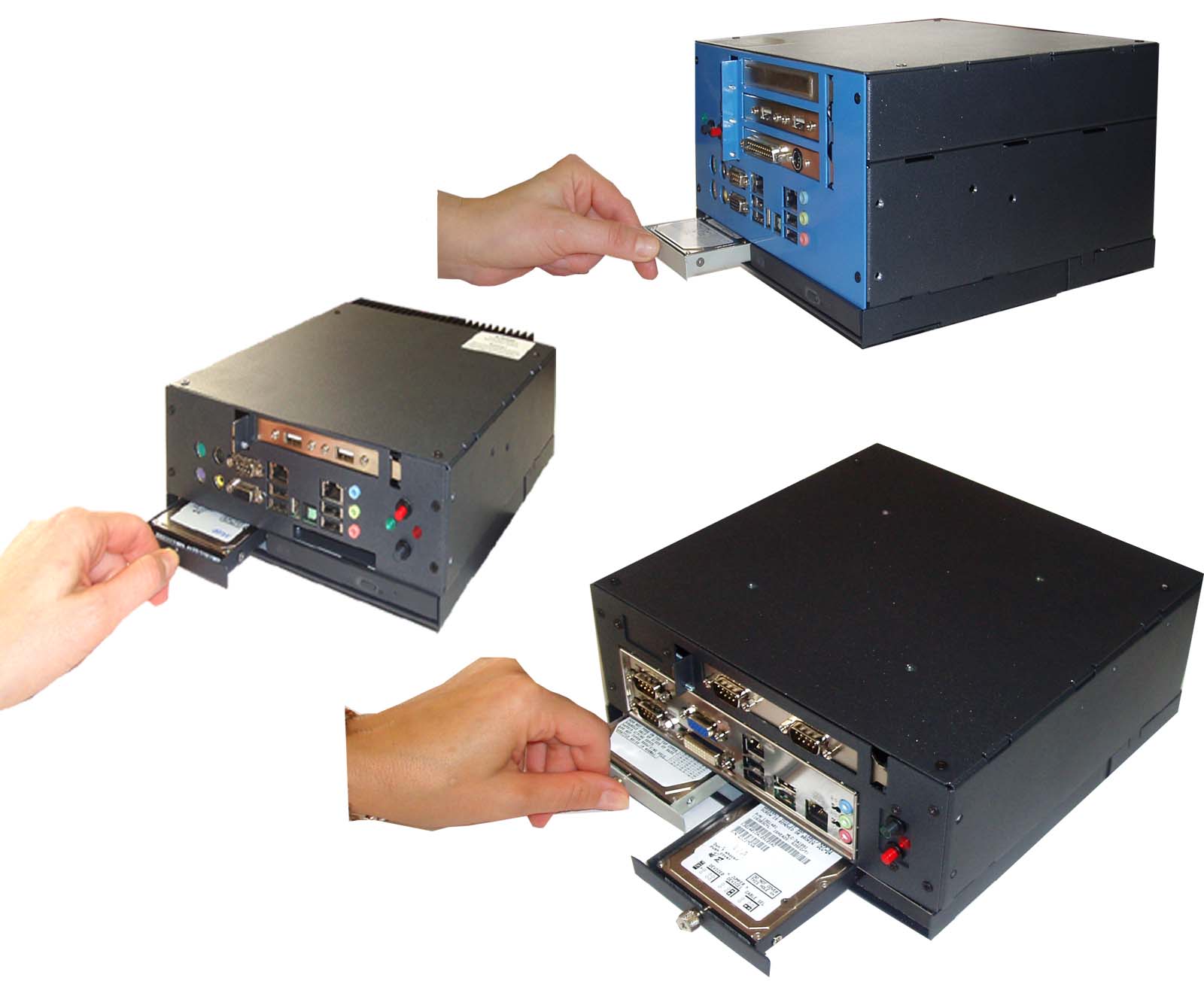

- vollmodulare Mini-IPC Bauform
