| Embedded Computer Mini-STX Board Intel® Core™ Mobile CPU |
|
Gigabyte mit Intel® Core™ i7 CPU
- Intel® Core™ i7 / i5 / i3 supports 6th and 7th generation, Intel® Pentium, Intel® Celeron (up to 64 W)
- 2 x DDR4 SO-DIMM up to 32 GB, supports 2133 MHz
- DisplayPort (Maximum resolution 4096 x 2304@60 Hz)
Support for DP 1.2 version
HDMI (Maximum resolution 4096 x 2160@24 Hz)
Support for HDMI 1.4 version
VGA (Maximum resolution 1920 x 1200@60 Hz)
- 1 x Intel® GigaLAN (10/100/1000 Mbit)
- Realtek ALC255 High Definition Audio
- Expansions slots:
1 x M.2 Socket 1 connector for wireless comminication module (M.2_WIFI)
- RĂĽckseite:
1 x HDMI
1 x DisplayPort
1 x VGA
2 x USB 3.0
1 x GigaLAN (RJ45)
1 x DC in power connector
- Intern:
2 x SATA 6Gb/s
1 x M.2 connector (Socket 3, M key, type 2280 SATA SSD support)
 Technische Daten_____pass. Gehäuse-& Montagelösung
|
 |
AS-Rock-mit Intel® Core™ i7 CPU
- Intel® Core™ i7-5500U Processor (4M Cache, 2,4GHz, up to 3.00GHz)
- Memory: Two DDR3L 1,35V SO-DIMM 1333/1600 MHz up to 16 GB
- Intel HD Graphics 5500
- 2x Realtek RTL8111E - 10/100/1000 GBit Controller
- Realtek ALC892 6-Channel HD Audio
- Frontseite:
Power on/off
Power LEDs
2x USB 2.0 Ports
4x USB 3.0 Ports
1x SD Card Reader
2x Audio Connectors
- RĂĽckseite:
1Ă— 12V DC Input
2x HDMI Connector
2x RJ-45 Port
2x Serial Ports RS-232
- Intern:
2 x Mini PCIe ports (for mSATA SSD)
1 x Mini PCIe ports
1 x Mini PCIe ports (for Wi-Fi)
1 x SATA Port
Technische Daten_____
|
 NEU |

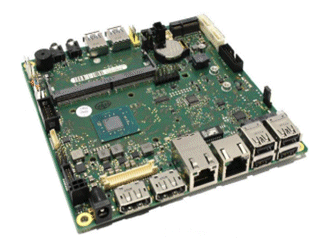

Fujitsu D3544-S
- Intel® Celeron Processor (J4105 4M Cache, , up to 2.5GHz) integr. Graphic 12 EUs @750 MHz
- Intel® Celeron Processor (J4005 4M Cache, , up to 2.7GHz) integr. Graphic 12 EUs @750 M Hz
- Memory: Two DDR3L 1,35V SO-DIMM 2400 MHz up to 16 GB
- Intel HD Graphics Dual Chn LVDS
- 2x Realtek RTL8111E - 10/100/1000 GBit Controller
- 8 Bit GPIO , HAÂ Audio on board
- Frontside Power on/off
Power LEDs
2x USB 2.0 Ports
4x USB 3.1 Ports
1x SD Card Reader
- onBoard WLAN, Bluetoth
- Integr TPM V2.0
- HW Watchdog on board
- RĂĽckseite:
1Ă— 12V DC Input
2x HDMI Connector
2x RJ-45 Port
2x Serial Ports RS-232/422 /485
- Intern:
2 x Mini PCIe ports (for mSATA SSD)
1 x Mini PCIe ports
1 x Mini PCIe ports (for Wi-Fi)
2 x SATA Port
- Designed for continious Operation , TDP 10 W
Technische Daten
|
 NEU |
ASUS H110- mit Intel® Core™ i7 /Celeron CPU
- Intel® Core™ i7-5500U Processor (4M Cache, 2,4GHz, up to 3.00GHz)
- Memory: Two DDR3L 1,35V SO-DIMM 1333/1600 MHz up to 16 GB
- Intel HD Graphics H110
- 2x Realtek RTL8111E - 10/100/1000 GBit Controller
- Realtek ALC892 6-Channel HD Audio
- Frontside Power on/off
Power LEDs
2x USB 2.0 Ports
4x USB 3.0 Ports
1x SD Card Reader
2x Audio Connectors
- RĂĽckseite:
1Ă— 12V DC Input
2x HDMI Connector
2x RJ-45 Port
2x Serial Ports RS-232
- Intern:
2 x Mini PCIe ports (for mSATA SSD)
1 x Mini PCIe ports
1 x Mini PCIe ports (for Wi-Fi)
1 x SATA Port
Technische Daten_TTt
|
|
