Embedded Computer COM-Express / ETX Board Intel® Core™ Mobile CPU
EmETXe-i89M3

NEU

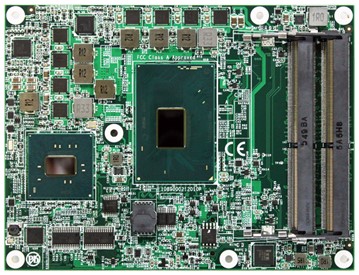

6th Generation Intel® Core™ i7-6822EQ/i5-6442EQ Processor COM Express® Basic Type 6 CPU Module
  • Soldered onboard 6th Gen. Intel® Core™ i7-6822EQ/i5-6442EQ Skylake Processor
  • Intel I219LM PCIe GbE PHY w/ iAMT
  • Dual Channels 24-bit LVDS and 2 x DDI ports
  • Support 2 independent displays
  • 5V~20V Wide Range Voltage Input
  • Wide Range Operating Temp.: -40 ~ 85°C

EmETXe-i89M3Technische Daten

NEU

6th Generation Intel® Core™i7/ i5/ i3/ Celeron Processor COM Express® Compact Type 6 CPU Module
  • Soldered onboard 6th Generation Intel® Core™ i7/ i5/ i3/ Celeron® Skylake Processor
  • Intel I219LM PCIe GbE PHY w/ iAMT
  • Dual Channels 24-bit LVDS and 2 x DDI ports
  • Support 3 independent displays
  • 5V~20V Wide Range Voltage Input
  • Wide Range Operating Temp.: -40 ~ 85°C

EmETXe-i89U0Technische Daten

NEU

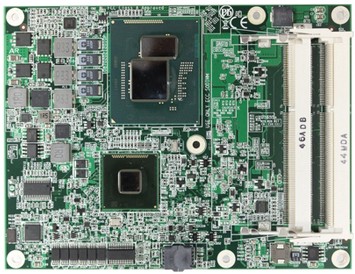

Wide-temperature COM Express® Basic Type 6 CPU Module
  • Soldered onboard 5th Generation Intel® Core™ i7-5700EQ 2.0GHz
  • Integrated Gigabit Ethernet
  • Dual channels 24-bit LVDS, Analog RGB, and 3 x DDI ports
  • Supports 3 independent displays
  • ECC Memory supported
  • Extended Operating Temp.: -40 ~ 85°C

EmETXe-i87M2Technische Daten
