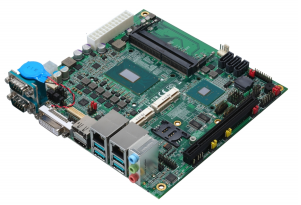

• Onboard Intel® 8th Gen Intel® Coreâ„¢ H-series Processor
• 2x DDR4 SO-DIMM 2666 MHz up to 32GB
• Integrated VGA, DVI, DisplayPort, HDMI, LVDS for Triple display support
• 1x Intel® Gigabit PHY LAN, 1x Intel® Gigabit LAN
• 2x MiniPCIe
• 3x SATA3, 4x USB 2.0, 6x COM, 1x LPC
• 2x8 bit GPIO, 1x SIM Slot, 1x PS/2
• 6x USB 3.1 Gen2
• Support Watchdog Timer
• Support 4K resolution
• Standart 24-pin ATX power supply or 4-pin 9~35V

Technische Daten

• Supports Dual Channel DDR4 SO DIMM, up to 32GB
• 4 x Displayport, 1 x eDP, 1 x Dual Channel 24-bit LVDS, 1 x VGA
• 2 x USB3.1 (Gen2), 7 xUSB2.0, 2 x SATA3, 6 x COM
• 1 x PCIe x8, 1 x mini-PCIe, 1 x M.2 Key E ,1 x M.2 Key M
• 2 x Realtek LAN
• 1 x TPM Header, 1 x TPM 2.0 IC onboard
• 12V/19~28V DC-in (DC Jack & 4-pin ATX PWR Con.)

Technische Daten

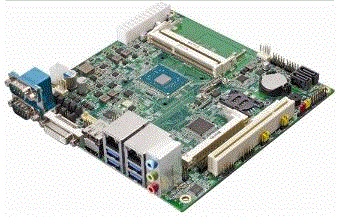

• Support 8th Generation Intel® Coreâ„¢ Desktop Processors
• 2 x DDR4 DIMM 2666 MHz up to 32GB
• Integrated VGA, DVI, DisplayPort, HDMI, LVDS for Triple display support
• 1 x Intel® Gigabit PHY LAN, 1 x Intel® Gigabit LAN
• 1 x MiniPCIe, 1 x Half Size MiniPCIe
• 3 x SATA3, 1 x PS/2, 1 x LPC, 1 x GPIO, 1 x SIM Slot
• 2 x RS232/RS422/RS485, 4 x RS232
• 6 x USB3.1 Gen2, 4 x USB2.0
• Support Watchdog Timer
• Support 4K resolution
• Standard 24-pin ATX power supply and 4-pin 12V

Technische Daten

• Socket LGA1151 for Intel Core® i7 / i5 / i3 / Pentium® / Celeron® (Skylake)
• Integrated Intel® HD Graphics Built-in Visuals
• Supports DDR4 2133 MHz, 2x SO-DIMM, up to 32 GB system memory
• 1x VGA, 1x HDMI, 1x LVDS
• 4x USB 3.0, 5x USB 2.0, 2x SATA3
• 1x M.2 (Key E), 1 M.2 (Key M)
• Gigabit LAN: 1x Intel® LAN
• DC 19V power unit
• TPM Header

Technische Daten

• Intel Core i7-5500U Processor (4M Cache, 2.4 GHz, up to 3.00 GHz)
• Memory: Two DDR3L 1,35V SO-DIMM 1333/1600 MHz up to 16 GB
• Intel HD Graphics 5500
• 2x Realtek RTL8111E - 10/100/1000 GBit Controller
• Realtek ALC892 6-Channel HD Audio
• Frontseite:
  Power on/off
  Power LEDs
  2x USB 2.0 Ports
  4x USB 3.0 Ports
  1x SD Card Reader
  2x Audio Connectors
• Rückseite:
  1× 12V DC Input
  2x HDMI Connector
  2x RJ-45 Port
  2x Serial Ports RS-232
• Intern:
  2 x Mini PCIe ports (for mSATA SSD)
  1 x Mini PCIe ports
  1 x Mini PCIe ports (for Wi-Fi)
  1 x SATA Port

Technische Daten

• Single Board Computer mit Intel® Core™ Mobile CPU i7, i5, i3
• Chipset Intel QM67 Express (Sandy Bridge)
• Socket 989 G2
• FSB replaced with DMI
• 8 GB RAM max
• VGA, DVI, HDMI Port, Dual Display Support
• 2 x GB LAN
• 8 x USB /2 x RS-232/485 /Parallel Port
• PCIe Slot, PCIe Mini-Card Slot
• onBoard RAID
• Intel vPro Technology Support
• Single Voltage Power

Technische Daten_____pass. Gehäuse-& Montagelösung

• Single Board Computer mit Intel® Core™ Mobile CPU i7, i5, i3
• Chipset Intel QM67 Express (Sandy Bridge)
• Socket 988B
• 16 GB RAM max
• VGA, DVI, HDMI Port, Dual Display Support
• 2 x GB LAN
• 6 x USB /3 x RS-232/422/485
• GPIO Interface /IrDA
• PCIe Slot, PCIe Mini-Card Slot
• Intel vPro Technology Support
• Single Voltage Power

Technische Daten_____pass. Gehäuse-& Montagelösung

• Single Board Computer für Intel® Core™ Mobile i7, i5, i3 CPU
• Intel QM57 Chipset
• Socket 989
• FSB 800/1066 MHz
• 8 GB RAM max
• VGA, DVI, HDMI Port
• 2 x GB LAN
• 8 x USB
• PCIe Slot, PCIe Mini-Card Slot
• Raid onBoard
• Fanless Operation with Heatpipe
• ATX Power

Technische Daten_____pass. Gehäuse-& Montagelösung

NEU

• Intel® Atomâ„¢ E3800 Serie
• 2 x DDR3L SODIMM up to 8GB (-E45/-J00)
  1 x DDR3L SODIMM up to 4GB (-E15)
• 1 x PCIe x4 (x1 signal)
  1 x Mini PCIe
• 1 x LVDS
  1 x DVI-I (DVI-D signal)
  1 x VGA
• 2 x SATA 2.0
• 2 x LAN
  6 x COM
  1 x USB 3.0
  6 x USB 2.0
  8-bit DIO

Technische Daten pass. Gehäuse-& Montagelösung

• Intel® Core™2 Duo
• Socket P
• Intel GM 45 Chipsatz
• FSB  667/800 MHz
• RAM bis 2 GB
• Dual GB LAN
• 6 x USB, 2 x RS-232 /422
• PCI-, Mini- PCI Expansion Slot
• on Board SATA RAID
• Intel Trusted Platform Module (TPM )
• ATX Voltage

Technische Daten

• Single Board Computer für Intel® Core™2 Duo
• Intel® GM45 Express Chipsatz + ICH9M
• FSB  667/800/1066 MHz
• RAM bis 4 GB
• Grafik-Controller Intel GMA X4500HD
• Integrated HDMI / DVI /VGA
• Dual LAN  10/100/1000 Base TX
• 8 x USB, 2 x RS-232/422
• 4 x SATA Interface
• 1 PCI Express 32 Bit, Mini-PCI Expansion Slot
• Audio Realtek ALC888
• Extended Operating Temp. -20 ~ 70°C
• ATX Power

Technische Daten

• Single Board Computer für Intel® Core™2 Duo
• Intel® GM45 Express Chipsatz + ICH9M
• FSB  667/800/ 1066 MHz
• RAM bis 4 GB
• Grafik-Controller Intel GMA X4500HD
• Integrated HDMI / DVI /VGA
• Dual Intel GB LAN
• 8 x USB, 2 x RS-232/422
• 4 x SATA Interface
• 1 PCI Express 32 Bit, Mini-PCI Expansion Slot
• Audio Realtek ALC888
• ATX Power

Technische Daten

NEU

• Intel® Apollo Lake Series Processor N3350 (2.40 GHz) /
  N4200 (2.50 GHz)
• 2 x DDR3L SO-DIMM 1866 max. 8GB
• Integrated HDMI, DisplayPort or DVI, LVDS for Triple Display supports
• 2 x Intel® Gigabit LAN
• 1 x MiniPCIe supports mSATA
• 2 x SATA3, 4 x USB 2.0, 4 x USB 3.0, 6 x COM, 1 x LPC
• 1 x GPIO, 2 x PS/2, 1 x SIM Slot, 1 x MINIPCI, 1 x PCI Slot, 1 x CFAST, 1 x SD Card
• Supports Watchdog Timer
• Support 4K resolution
• DC input 6~30V
• Fanless Operation

Technische Daten

• Intel® Dual-Core Processor J1800 (2.41 GHz)
• 2 x DDR3/DDR3L SO-DIMM 1333/1066 max. 16GB
• Intel® 7th generation (Gen 7) graphics
• 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
• 1 x Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111GR
• 1 x PCI Express 2.0 x1 Slot
• Intern:
  1 x 3W Audio AMP Output Wafer Header
  1 x COM Port Header
  1 x TPM Header
  1 x Chassis Intrusion Header
  1 x CPU Fan Connector (3-pin)
  1 x Chassis Fan Connector (3-pin)
  1 x 24 pin ATX Power Connector
  1 x Front Panel Audio Connector
  1 x USB 2.0 Header
• Extern: 1 x PS/2 Mouse Port
  1 x PS/2 Keyboard Port
  1 x Parallel Port (ECP/EPP Support)
  1 x Serial Port: COM1
  1 x D-Sub Port
  1 x HDMI Port
  3 x USB 2.0 Ports
  1 x USB 3.0 Port
  1 x RJ-45 LAN Port
  1 x HD Audio Jacks: Line in / Front Speaker / Microphone
• Fanless Operation

Technische Daten

• Mini-ITX Industrie Mainboard mit Intel® Atom™ D2550/ (Dual Core) Prozessor
• Intel® NM10 Express Chipset
• RAM DDR3 1066 (max. bis 4 GB)
• Graphic Controller Intel® GMA3650 Graphics
• Support 1080P Full HD Display
• Support DVI Output
• Ethernet Controller 2 x Intel® 82574L GbE LAN
• Hardware Video Decoder for Blu-ray Playback
• 10 x COM Ports for Mutil-Applition
•  8 x USB 2.0
• 2x SATA2, 1x PCI, 1 x CFast-socket
• GGPIO Interface 8-bits (4 x GPI, 4 x GPO)
• 12/19/24VDC single Voltage
• Fanless Operation

Technische Daten_____pass. Gehäuse-& Montagelösung

MSI IM-US15WP Intel® Atom™ CPU Z 510P / Z530P Ultra Low Power

• Single Board Computer mit Intel® Atom™ CPU Z510P/Z530P 1.1 / 1.6GHz
• Intel US-15WP WPT Chipsatz ( nur 5 W Power)
• Hyper Threading Technology
• FSB  533 MHz
• RAM bis 2 GB
• LAN 10/100 Base TX
• 4 x USB, 2 x RS-232
• 1 MIni- PCI Expansion Slot
• CF-Socket, MSDIO
• Integrated LVDS/VGA Controller
• Integrated AC97 Audio
• Fanless Operation
• Extended Operating Temp. -40 ~ 85°C
• 12VDC single Voltage

Technische Daten _____pass. Gehäuse-& Montagelösung

• Single Board Computer with OnBoard Intel® Atom™ N270 1.6GHz
• Power Consumption only 18W
• Intel -945 Chipsatz +ICH7
• Hyper Threading Technology
• FSB  533 MHz
• RAM max. 2 GB
• 2 x GB LAN
• 6 x USB, 5 x RS-232 /422/485
• 2 x SATA Controller onBoard, 1 x IDE
• Graphic Controller (Intel GMA950), VGA, DVI Output
• Integrated AC97 Audio
• 1 PCI-Slot, PCIe
• Fanless Operation
• ATX Voltage

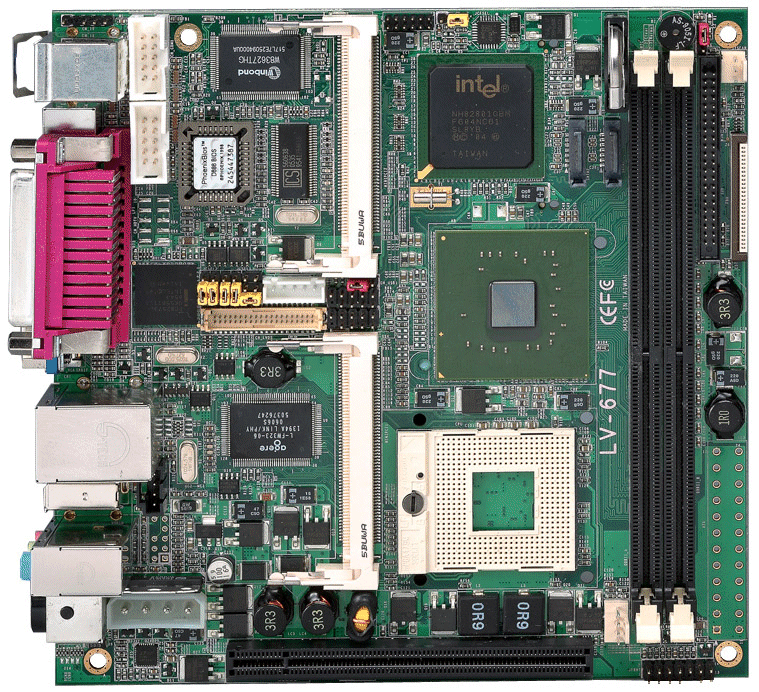

• Single Board Computer für Intel® Pentium® M
• Intel GM-915 Chipsatz
• Socket 479
• Hyper Threading Technology
• FSB 400/533 MHz
• RAM 2 GB max.
• 10/100/1000 Base TX LAN (Realtek Gbe)
• 4x USB, 2x RS-232
• IEEE 1394
• 2x sATA Controller
• 1 PCI Expansion Slot
• Integrated AC97 Audio
• 12/19VDC single Voltage

Technische Daten

- vollmodulare Mini-IPC Bauform
